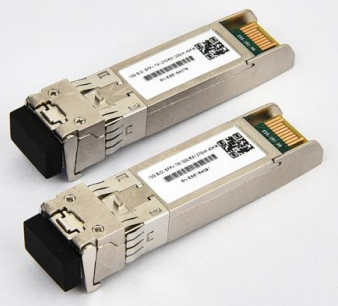

TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver, 10km Reach Tx1270/1330nm / Rx1330/1270 nm
Productdetails:
| Plaats van herkomst: | China, Shenzhen |
| Merknaam: | DF/OEM/Nuetral |
| Certificering: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modelnummer: | TK-B23(32) 92-3LCD10 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Bespreekbaar |
|---|---|
| Prijs: | negotiable denpend on QTY |
| Verpakking Details: | Blisterdoos + doos |
| Levertijd: | 5 tot 9 werkdagen, afhankelijk van de hoeveelheid |
| Betalingscondities: | Western Union, T/T, MoneyGram/Paypal |
| Levering vermogen: | 1000 stcs/dag |
|
Gedetailleerde informatie |
|||
| Productnaam: | TK-B23(32)92-3LCD10 10Gbps SFP+ bidirectionele transceiver, 10 km bereik Tx1270/1330nm / Rx1330/1270 | Voedingsspanning: | 3,14-3,46V |
|---|---|---|---|
| Voedingsstroom: | 300 ma | Differentiële impedantie invoeren: | 100 Ω |
| Single-ended data-invoerzwaai: | 180-700mA | Swingdifferentie voor gegevensinvoer: | 400-1800 mV |
| Verzenden Uitschakelen Bevestigingstijd: | 10 ons | Differentiële gegevensuitvoerzwaai: | 300-850mA |
| Bedrijfstemperatuur: | 0 aan +70°C | Garantie: | 1 jaar, levenslang onderhoud |
| Vezelmerk: | Corning, YOFC, OFS, Draka | ||
| Markeren: | 10Gbps SFP+ transceiver 10km reach,Bi-Directional transceiver Tx1270/1330nm,SFP+ optical module with warranty |
||
Productomschrijving
TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver
TK-B23(32)92-3LCD10
10Gbps SFP+ Bi-Directional Transceiver, 10km Reach
Tx1270/1330nm / Rx1330/1270 nm
Tx1270/1330nm / Rx1330/1270 nm
Product Overview
The TK-B23(32)92-3LCD10 series single mode transceiver is a small form factor pluggable module designed for duplex optical data communications, including 10GBASE-LR/LW as defined by IEEE 802.3ae. Featuring an SFP+ 20-pin connector, it enables hot plug capability for seamless integration.
This module is engineered for single mode fiber operation with nominal wavelengths of 1270nm or 1330nm. The transmitter section employs a multiple quantum well DFB laser that complies with Class 1 laser safety standards per IEC-60825.
The receiver section incorporates an integrated InGaAs detector preamplifier (IDP) mounted in an optical header, paired with a limiting post-amplifier IC for optimal performance.
Applications
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other Optical Links
Key Features
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 10km on 9/125um SMF
- A:1270nm DFB Laser transmitter, 1330nm receiver
- B:1330nm DFB Laser transmitter, 1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Standard: 0 ~ 70 °C
Compliance Standards
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15, Class B compliant
- FDA 21 CFR 1040.10 and 1040.11, class1 compliant
- RoHS compliant
Technical Specifications
Technical Notes
- Connected directly to TX data input pins. AC coupled thereafter.
- Or open circuit
- Into 100 ohms differential termination.
- 20 - 80%.
- Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
- Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
