MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | OEM |
| Certificering: | ISO, CE RoHS |
| Modelnummer: | MPO/MTP-MM-OM3-Uni LC |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | USD12-20/pc |
| Verpakking Details: | PE zelfsluitende zak + doos |
| Levertijd: | 5-8 werkdagen |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 50000 stuks per maand |
|
Gedetailleerde informatie |
|||
| Materiaal: | LSZH, OFNP | Vezeltype: | mm |
|---|---|---|---|
| Kleur: | Aqua | Aanpasbaar: | Ja |
| Markeren: | MPO MTP patchcord uniboot LC,OM3 breakout fiber optic cable,data center cabling fiber optic |
||
Productomschrijving

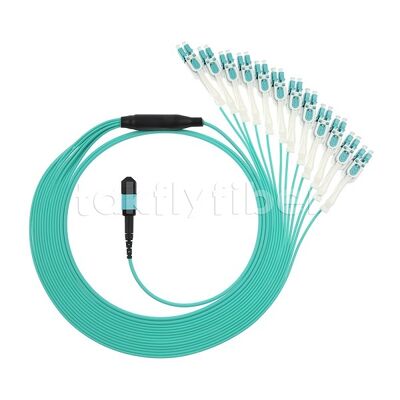

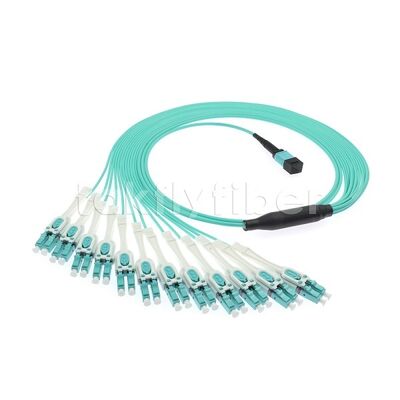

MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable
MPO/MTP breakout patch cords are designed for data center cabling and AI telecom applications, providing efficient optical connectivity in high-density environments.
Product Overview
MPO/MTP breakout patch cords consist of four main components: main cable, breakout cable, branching device, and connector. The multi-core main cable simplifies cabling management and prevents tangling, making it ideal for high-density optical cabling environments.
Key Features
- Changeable polarity with simple operation
- LC uniboot connector design saves 50% cabling space
- Compact and space-saving for high-density environments
- Tool-free outer housing opening
- High-quality ferrule with professional polishing technology
- Precise optical endface matching for stable transmission
- 100% tested for quality assurance
- Multiple types available with customization options
Applications
TAKFLY MPO/MTP breakout patch cords feature stable transmission and high reliability, making them ideal for optical network scenarios including data centers and various optical cabling applications.
Available Types
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customizable transmission mode, cable type, and connector type options.
Technical Specifications
| Performance | Type | Multimode | Singlemode |
|---|---|---|---|
| Insertion Loss (IL) | MPO | Single Max: 0.35dB (L) Single Max: 0.60dB (G) |
Single Max: 0.35dB (L) Single Max: 0.75dB (G) |
| LC | Max: 0.10dB (L) Max: 0.15dB (G) |
Max: 0.30dB | |
| Return Loss (RL) | MPO | >20dB | >60dB (8 degree Angle Polish) |
| LC | >30dB | >50dB(UPC), >60dB(APC) | |
| Mechanical | MPO | <0.2dB, 200 times insertion | |
| LC | <0.2dB, 500 times insertion | ||
| Environmental | Working Temp | -20°C to +60°C | |
