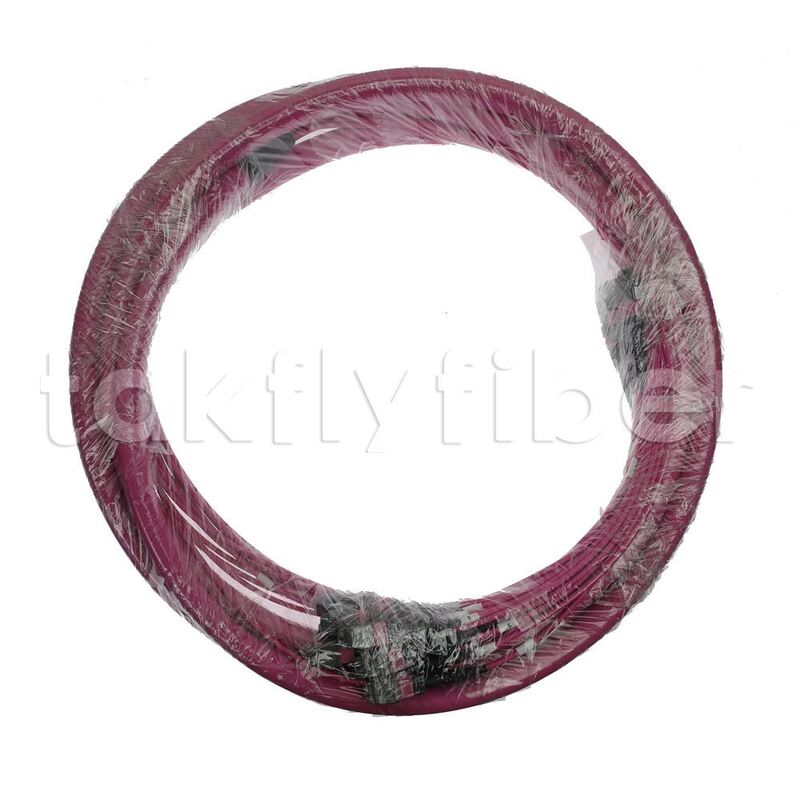

CPR B2ca 144 Cores MTP®/MPO Fiber Optic MTP Trunk Cable for 40G/100G/400G/800G High Density Cabling
Productdetails:
| Plaats van herkomst: | Shenzhen, China |
| Merknaam: | Neutral/OEM/Takfly |
| Certificering: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Modelnummer: | TK-PC-MTP-12F-OM4-OFNP-005 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | US$0.01~US$399.99/PC |
| Verpakking Details: | PE-zak |
| Levertijd: | 3-7 werkdagen |
| Betalingscondities: | Western Union,L/C,T/T,Paypal |
| Levering vermogen: | 500 STKS/dag |
|
Gedetailleerde informatie |
|||
| Kernen: | 144F, 12x12F | Vezeltype: | MM OM4 |
|---|---|---|---|
| Lengte: | 5M/15M of aangepast | Kabeldiameter: | 3,0 mm |
| Connectortype: | MPO/MTP | Invoegverlies: | Laag verlies: 0,35 dB |
| Retourverlies: | MM ≥20dB | Kabel jas: | LSZH |
| Kabel kleur: | Magenta, violet | Sollicitatie: | Datacenter, Telecom, Netwerk |
| Certificering: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Productnaam: | 12F glasvezelkabelboom MPO-LC Uniboot MPO Breakout-patchkabel, plenum (OFNP), 0,35 dB Max. |
| Markeren: | 144 cores MTP trunk cable,MTP fiber optic cable for 40G,high density MPO trunk cable |
||
Productomschrijving
CPR B2ca 144 Cores MTP®/MPO Fiber Optic MTP Trunk Cable designed for 40G/100G/400G/800G high density cabling applications.
MPO MTP trunk cable is often used in backbone cabling systems to connect different parts of a network. Their high fiber count and density make them suitable for efficiently managing and transmitting data across the network backbone.
MPO patch cord plays a vital role in telecommunications networks, providing a compact and organized solution for fiber optic connections. They are employed in both local and long-distance communication infrastructure.
MTP MPO patch cables are extensively used for connecting networking equipment, such as servers, switches, and routers, in data centers. They facilitate quick and efficient data transmission, supporting high-speed applications.
Takfly offers extensive customization options for MPO Trunk Cables to meet your specific application requirements. Contact our Solutions Specialists for more information.
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm；Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
- Factory-terminated for consistent quality, high performance, and reduced installation time
- 100% tested for low insertion loss performance and high back reflection
- Fiber Count: 12 fiber trunk cable
- Laser-Optimized multimode OM4 fiber
- Type B polarity, compatible with 40G QSFP eSR4 and 100G QSFP28 SR4 optics
- Optimized performance - available in elite MTP and discrete premium connector options
- Complies with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS standards
- LSZH Jacket by Default
- Supports next-generation network speeds and future-proofing
- Assemblies compatible with multiple active equipment upgrades
- Modular connectivity supports 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time
- Configurable length assemblies reduce slack management and patch field congestion
- Improved air-flow management
- Data Center
- Campus
- Central Office
- Office Backbone
- Professional Manufacturing Expertise
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 26+ R&D Engineers
- 16 Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Global exhibition participation
- 24/7 after-sales service
- Raw material incoming inspection before production
- Full inspection after every individual process
- Half-done production inspection
- Finished products inspection before packing
- Pre-shipping spot checks
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging options: Plastic Bag, Carton, and Pallet
- Shipping methods: DHL, UPS, FEDEX, TNT, EMS (3-5 days)
- Sea or Air freight available with preferred forwarders
Payment Terms: T/T, Paypal, Western Union, L/C
Competitive pricing with quantity-based negotiation
Contact Us Today
With over 10 years of industry experience, we provide exceptional service and professional technical support. Contact us today for product inquiries or technical consultation.
