Bundle Armored Optical Cable 2000M LSZH/PVC/PU
Productdetails:
| Plaats van herkomst: | China, Shenzhen |
| Merknaam: | DF/OEM/Nuetral |
| Certificering: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modelnummer: | TK-PC-48F-SC-OS2-50M |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Bespreekbaar |
|---|---|
| Prijs: | negotiable denpend on QTY |
| Verpakking Details: | Blisterdoos + doos |
| Levertijd: | 5 tot 9 werkdagen, afhankelijk van de hoeveelheid |
| Betalingscondities: | Western Union, T/T, MoneyGram/Paypal |
| Levering vermogen: | 1000 stcs/dag |
|
Gedetailleerde informatie |
|||
| Productnaam: | Bundel gepantserde optische kabel | Vezelselling: | 2-12 |
|---|---|---|---|
| Kernversterking: | Aramidegaren | Materiaal: | Roestvrij staal |
| Jas materiaal: | LSZH/PVC | Kleur: | 1. Wit 2. Blauw of andere kleuren op aanvraag verkrijgbaar |
| Schede materiaal: | PVC/LSZH/PU | Buitendiameter (mm): | 3,0-5,5 mm |
| Kabelgewicht (kg/km): | 25-47 | Diameter(±1 µm): | 125 μm |
| Coatingdiameter (±5 µm): | 250 μm | Werktemperatuur: | -20 ℃ ~ 70 ℃ |
| Lengte: | 2000 m of op maat | Vezelmerk: | Corning, YOFC, OFS, Draka |
| Markeren: | armored fiber optic cable 2000m,LSZH armored optical cable,PVC PU fiber optic cable |
||
Productomschrijving
Bundle Armored Optical Cable 2000M LSZH/PVC/PU
Bundle Indoor armored Cable uses Φ600μm or Φ900μm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber is wrapped with a layer of steel wire, and aramid yarn as strength member units. The outermost layer is extruded with a layer of polyvinyl chloride PVC or PU polyurethane, LSZH (low-smoke, halogen-free, flame retardant) jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Optical connections in optical communication equipment rooms and optical distribution frames
- Interconnection of instruments and communication equipment
Product Features
- Good mechanical and environmental characteristics
- Flame retardant characteristics meets the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft, flexible, easy to splice, and with big capacity data transmission
- Anti rodent and UV stable
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

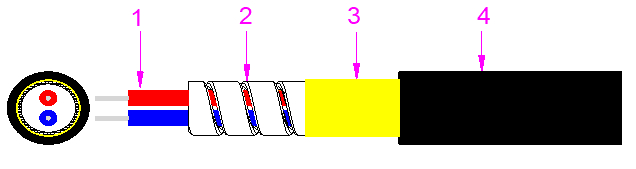

Product Structure
Other Requirements
Length of production optical cable: 2000M
Optical cable outer sheath printing specifications, such as:
ARMORED OPTICAL FIBER CABLE 12C 5.5 SM G652D-9/125um - LSZH - MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
