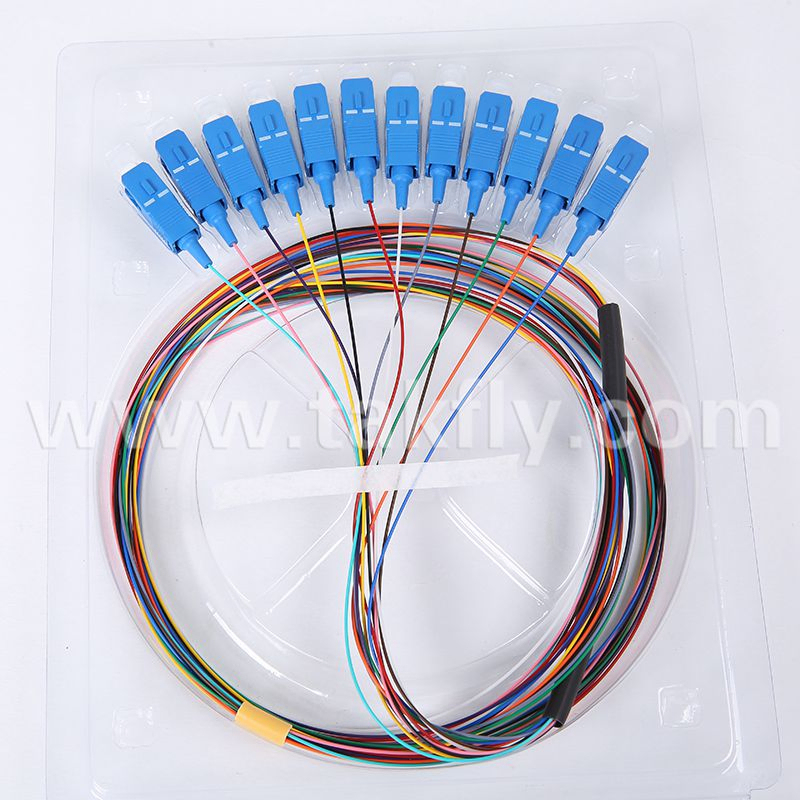

12 Core SC/UPC Single-Mode Fiber Optic Pigtail with 900um Tight Buffer and 2 Years Warranty
Productoverzicht
12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing ...
Product Custom Attributes
Verbindingsstructuur:
SC
Materiële vorm:
Ronde draad
Laterale druk:
> 1000 (n/100 mm)
Treksterkte:
> 10000N
Kerntelling:
12 kern
Schede materiaal:
PVC
Type connector:
Sc, LC, FC, St enz.
Jas OD:
0,9/2.0/3,0 mm
Poolse type:
UPC/APC
Ferrule materiaal:
Zirkonia keramiek
Invoegverlies:
≤0,3 dB
Retournelverlies:
≥45 dB
Bedrijfsgolflengte:
1310, 1510 nm
Bedrijfstemperatuur:
-40 tot 80 °C
Opslagtemperatuur:
-45~85 °C
Markeren:
900um Tight Buffer Fiber Optic Pigtail
,2 Years Warranty Optical Pigtail
,1-5 Days Delivery Fiber Pigtail
Basiseigenschappen
Plaats van herkomst:
Shenzhen, China (vasteland)
Certificering:
RoHS, CE, ISO9001
Handelsgoederen
Min. bestelaantal:
1
Prijs:
0.21
Productomschrijving
12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail
Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing applications. The industry-standard color coding simplifies enclosure layout and organization.
Specifications
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~80 | |||
| Storage temperature | °C | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||
Fiber Optic Pigtail Color Coding
1. Blue
2. Orange
3. Green
4. Brown
5. Grey
6. White
7. Red
8. Black
9. Yellow
10. Purple
11. Pink
12. Aqua
Key Features and Applications
- Color-coded fiber jacket for easy identification and management
- Low insertion loss and back reflection loss
- Clearly identifiable fiber buffer colors under all lighting conditions
- Reduces installation time and prevents incorrect patching
Applications
- Data centers and premise installations
- Telecommunication networks
- Ethernet, fiber channel, ATM, LAN, MAN and WAN
- Data communication systems
- Indoor applications
Product Images
Applications
Order Information
Certificates
Factory Photo
