SC Duplex OM1 62.5/125um Fiber Optic Patch Cord 3mm PVC
Productdetails:
| Certificering: | RoHS, CE, ISO9001, VDE, CCC |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | 0.56 |
|
Gedetailleerde informatie |
|||
| Verbindingsstructuur: | 12cores vezeljumper | Materiële vorm: | Ronde draad |
|---|---|---|---|
| Laterale druk toegestaan: | 100 (n/100 mm) <1000 (n/100 mm) | Toegestane treksterkte: | 100N <1000N |
| Schede materiaal: | PVC | Type connector: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, ECT |
| Kabeljaskleur: | Geel, blauw, groen, aqua, rood, magenta, beige | Kabelbuit diameter: | 0,9 mm, 1,6 mm, 1,8 mm, 2,0 mm, 2,4 mm, 2,8 mm, 3,0 mm |
| MPO MTP -polijsten: | PC, UPC, APC | Vezeltype: | OS1, OS2, OM1, OM2, OM3, OM4 |
| Kabeljasmateriaal: | PVC, LSZH, OFNP, PE | Vezelkernen: | SX, DX, 4 ~ 144 multi-fibers cores |
| Retournelverlies: | PC> 30dB; APC> 50DB | Invoegverlies: | <0> |
| Bedrijfstemperatuur: | -45 tot +85 graden | ||
| Markeren: | SC Duplex OM1 fiber optic cable,62.5/125um fiber patch cord,3mm PVC fiber optic cable |
||
Productomschrijving
SC Multimode OM1 62.5/125um Duplex Fiber Optic Patch Cord
The SC Multimode OM1 62.5/125um Duplex Fiber Optic Patch Cord provides quick and easy fiber termination in the field. Available for 900 micron applications, this solution enables installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality at a competitive price.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation process
- Cost-effective solution
- High reliability
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.1db typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Type | Singlemode (UPC/APC) | Multimode |
|---|---|---|
| Size 1 | 125.0+1/-0um, Concentricity: ≤1.0um (UPC) 125.0+1/-0um, Concentricity: ≤0.5um (APC) |
125.0um, Concentricity: ≤3.0um |
| Size 2 | 125.3+1/-0um, Concentricity: ≤1.0um (UPC) 125.3+1/-0um, Concentricity: ≤0.5um (APC) |
127.0um, Concentricity: ≤3.0um |
| Size 3 | 125.5+1/-0um, Concentricity: ≤1.0um (UPC) 125.5+1/-0um, Concentricity: ≤0.5um (APC) |
128.0um, Concentricity: ≤3.0um |
| Size 4 | 126.0+1/-0um, Concentricity: ≤1.0um (UPC) 126.0+1/-0um, Concentricity: ≤0.5um (APC) |
- |
Product Connector Options
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |

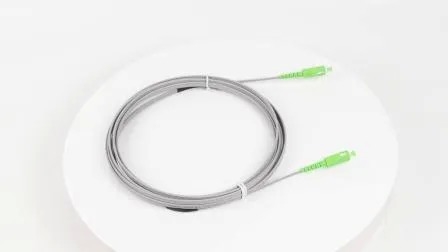

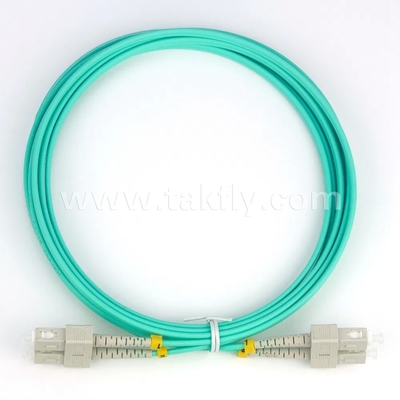

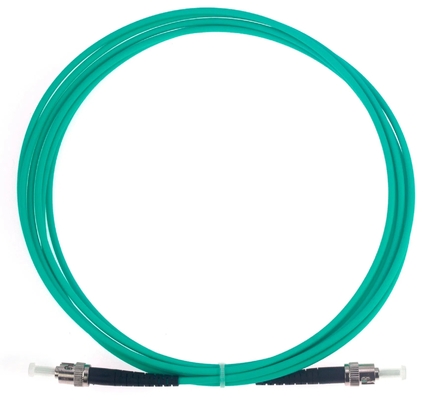

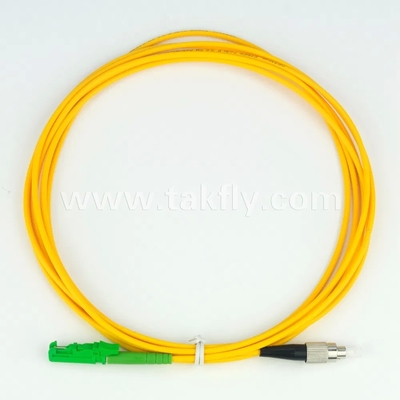

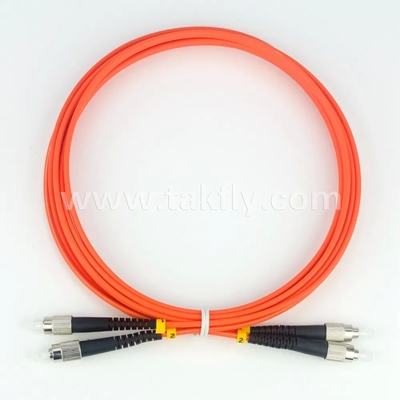

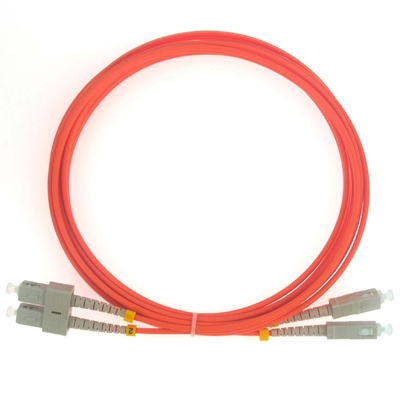

Product Images
