Duplex OS2 LC-SC Fiber Optic Patch Cord 3.0mm 10m
Productdetails:
| Certificering: | RoHS, CE, ISO9001, VDE, CCC |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | 1.5 |
|
Gedetailleerde informatie |
|||
| Verbindingsstructuur: | SC | Materiële vorm: | Ronde draad |
|---|---|---|---|
| Laterale druk toegestaan: | 100 (n/100 mm) <1000 (n/100 mm) | Toegestane treksterkte: | 100N <1000N |
| kern: | Enkele kern | Schede materiaal: | PVC |
| Kabeldiameter: | 3,0 mm | Vezeltype: | OS2 |
| Kabellengte: | 10m | Type connector: | Sc naar Lc |
| Polijsttype: | UPC | Invoegverlies: | <0> |
| Retournelverlies: | ≥50db | Bedrijfstemperatuur: | -20 ° C ~ +70 ° C |
| Opslagtemperatuur: | -40°C ~ +80°C | ||
| Markeren: | duplex OS2 fiber optic patch cord,LC-SC fiber optic cable 10m,3.0mm OS2 fiber optic patch |
||
Productomschrijving
Duplex OS2 LSZH 3.0mm LC-Sc Fiber Optic Patch Cord
Suited for equipment jumper cable, cross connects, and work area connections. All patch cords are manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. Available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior Quality Standard PC/UPC/APC Polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- RoHS compliant green production
- High stability in various environments
- Custom orders available
Technical Specifications
| Descriptions | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change,1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||

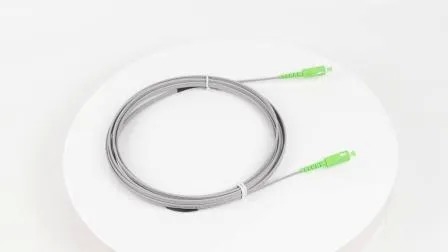

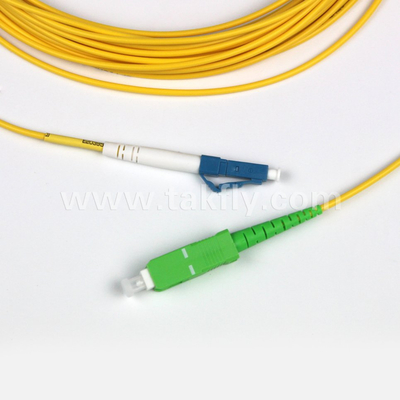

Product Images
Any question about this item, please leave me an inquiry or contact me directly.
