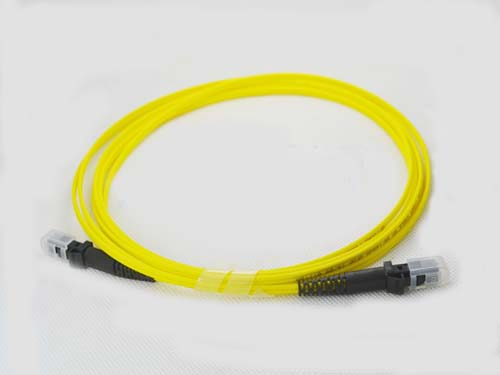

MTRJ-MTRJ Duplex Single Mode Fiber Patch Cord 0.2dB Insertion Loss
Productdetails:
| Certificering: | RoHS, CE |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | 1.8 |
|
Gedetailleerde informatie |
|||
| Verbindingsstructuur: | MTRJ | Materiële vorm: | Ronde draad |
|---|---|---|---|
| Laterale druk toegestaan: | 100 (n/100 mm) <1000 (n/100 mm) | Toegestane treksterkte: | <100N |
| kern: | Dubbele Kern | Schede materiaal: | PVC |
| Invoegverlies: | 0.2DB | Retournelverlies: | 50DB |
| Treksterkte: | 10kg | Bedrijfstemperatuur: | -40 tot 85 graden |
| Geschikte vezels: | 9/125 50/125 62.5/125 | Inbreng-trekproef: | 1000 keer |
| Herhaalbaarheid: | <= 0,1 | Keramische ferrule -specificatie: | 125.5um Concentriciteitsafwijkingen: <= 1UM | 127um concentriciteitsafwijkingen: <= 3um |
| Productiecapaciteit: | 50.000/week | ||
| Markeren: | MTRJ-MTRJ duplex fiber patch cord,single mode fiber optic cable,low insertion loss fiber patch cord |
||
Productomschrijving
MTRJ-MTRJ Duplex Single Mode Fiber Optic Patch Cord
MTRJ-MTRJ Duplex Singlemode Optical Patch Cord
Applications
- CATV Telecom networks
- Optical test equipment
- Local area networks
- Wide area networks
- Data processing networks
Features
- Low insertion loss value
- High back reflection loss value
- Stable capability and high reliability
- Precise connector
- Excellent mechanical capability
- Boots in a variety of colors
Specifications
| Item | Single Mode | Multi Mode |
|---|---|---|
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Return Loss | PC≥50dB, UPC≥55dB, APC≥60dB | |
| Insert-pull Test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10KG | |
| Operating Temperature | -40ºC ~ +85ºC | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:≤1um | 127um concentricity deviations:≤3um |
| Suitable Fiber | 9/125um | 50/125um, 62.5/125um |
