FTTx Fiber Optic High-Precision Digital Fusion Splicer in Chinese TAKFLY TKR-1898RH
Productdetails:
| Plaats van herkomst: | China, Shenzhen |
| Merknaam: | DF/OEM/Nuetral |
| Certificering: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modelnummer: | FTTx multifunctionele gereedschapskist voor boomgatstripper met glasvezel |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Bespreekbaar |
|---|---|
| Prijs: | negotiable denpend on QTY |
| Verpakking Details: | Blisterdoos + doos |
| Levertijd: | 5 tot 9 werkdagen, afhankelijk van de hoeveelheid |
| Betalingscondities: | Western Union,T/T,MoneyGram/Paypal |
| Levering vermogen: | 1000 stks/dag |
|
Gedetailleerde informatie |
|||
| Productnaam: | FTTx multifunctionele glasvezelstripper Boomgattoolkit voor onderhoud, installatie en probleemoploss | Toepasselijke vezels: | SM, MM, NZ-DS, EDF, Pigtail, Kabel (met rubber geïsoleerde draad), SC/LC/FC-connector (optionele fun |
|---|---|---|---|
| Gemiddeld lasverlies: | 0.02dB (SM), 0.01dB (MM.), 0.04dB (NZDS), 0.04dB (EDF) | Terugkeerverlies: | ≥60db |
| Spanningstest: | 2.0N (200gf) (Norm) | Exploitatievoorwaarden: | -10~+50°C (bedrijfstemperatuur), 0~95% RH (vochtigheid) |
| Afmetingen: | 130 (W) *135 (D) *130 (H) MM | Gewicht: | 2.12KG |
| Vezel merk: | Corning, YOFC, OFS, Draka | ||
| Markeren: | FTTx fiber optic fusion splicer,high-precision digital fusion splicer,TAKFLY TKR-1898RH splicer |
||
Productomschrijving

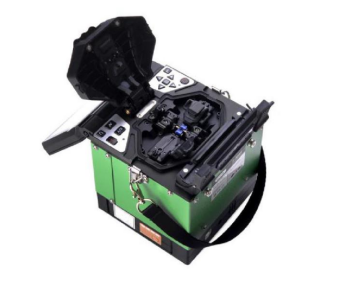

TAKFLY TKR-1898RH FTTx Fiber Optic High-Precision Digital Fusion Splicer
Product Overview
The TAKFLY TKR-1898RH is a high-precision digital fusion splicer designed for FTTx applications. This advanced three-hole fiber stripper handles all routine fiber stripping operations with precision:
- First hole: Peels 1.6-3.0 mm outer fiber jacket to 600-900 μm buffer coating
- Second hole: Strips 600-900 μm buffer layer to 250 μm coating
- Third hole: Removes 250 μm coating to expose 125 μm bare glass fiber
Key Features
- 5-inch high-resolution color LCD display with position-based image rotation
- Average splice time: 8 seconds
- Average tube-heat time: 25 seconds
- Automatic heat mode operation
- Rechargeable lithium battery providing up to 200 continuous splices and heats
- X or Y axis separate views with 360x magnification, or simultaneous 220x view
- Advanced image processing technology
- Fiber core alignment technology with enhanced accuracy (PAS Technology)
- Strong wind and dust resistance capabilities
- Automatic self-inspection: Display inspection and forward inspection
- Cleave length: 9-16mm (∮0.25mm) and 10-16mm (∮0.9mm)
- Splicing modes: Auto, Manual, and Full-Auto
- Stores 6,000 groups of latest splice results
- Patented 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber
- Patented Multipurpose 1+N fixture system
- 1+N configuration includes one 3-in-1 fixture plus optional fixtures for SC/LC/FC connectors
Technical Specifications
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional) |
|---|---|
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Typical Splicing Time | 10 seconds |
| Typical Heating Time | 30 seconds |
| Splicing Program | 50 groups |
| Protection Sleeve | 20mm, 40mm, 60mm |
| Operating Language | Chinese, English, French, Portuguese, Spanish |
| Operating Conditions | -10 to +50°C temperature, 0-95% humidity |
| Power Supply | AC adaptor: 100-240V input, 50/60Hz; 12V, 5A output (DC) |
| Monitor | 5-inch high-resolution color LCD display |
| Fiber Image | X/Y axis separate 360x magnification or simultaneous view |
| Storage Capacity | 6,000 groups of splice results |
| Splicing Model | Auto, Manual & Full Auto |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture |
| Dimensions | 130(W) × 135(D) × 130(H) mm |
| Weight | 2.12kg |

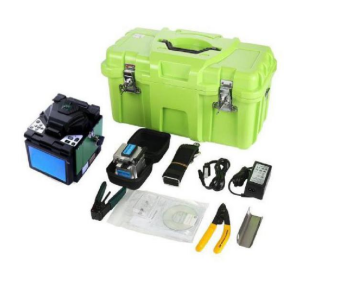

Standard Accessories
| No. | Item | Quantity |
|---|---|---|
| 1 | Machine TKR-1898RH | 1 |
| 2 | Fiber Cleaver | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor (Charger) | 1 |
| 5 | Battery | 1 |
| 6 | Spare Electrodes | 1 |
| 7 | Cooling Tray | 1 |
| 8 | Instruction CD | 1 |
| 9 | Quick Reference Guide | 1 |
| 10 | Rubber-insulated wire stripping pliers | 1 |
| 11 | Rubber-insulated wire 3-in-1 cutting fixture | 1 |
| 12 | Carrying Case with Carrying Strap | 1 |
Packaging includes custom-made professional anti-shock tool kit with sponge interior and export-standard carton box with PE foam (53×32×30cm).
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, and more
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
