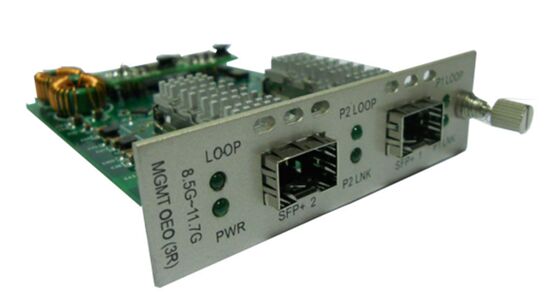

10G SFP+ to SFP+ OEO Fiber to Fiber Media Converter AC220V Unmanaged Long-Haul Signal (3R Repeater)
Productdetails:
| Plaats van herkomst: | China, Shenzhen |
| Merknaam: | DF/OEM/Nuetral |
| Certificering: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modelnummer: | 10G SFP+ naar SFP+ OEO Glasvezel-naar-glasvezelmediaconverter AC220V Onbeheerd langeafstandssignaal |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Bespreekbaar |
|---|---|
| Prijs: | negotiable denpend on QTY |
| Verpakking Details: | Blisterdoos + doos |
| Levertijd: | 5 tot 9 werkdagen, afhankelijk van de hoeveelheid |
| Betalingscondities: | Western Union,T/T,MoneyGram/Paypal |
| Levering vermogen: | 2000 nrs./week |
|
Gedetailleerde informatie |
|||
| Productnaam: | 10G SFP+ naar SFP+ OEO Glasvezel-naar-glasvezelmediaconverter AC220V Onbeheerd langeafstandssignaal | TransmissiesnelheidEquipment-functie: | 3R repeater |
|---|---|---|---|
| Transmissiesnelheid: | 10 Gb/s (9,95 Gb/s - 11,35 Gb/s) | Protocollen: | IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM) |
| Toegangstype: | 10G LAN/ 10G WAN | Interfacetype: | Type A: SFP+ naar/van SFP+ Type B: SFP+ naar/van XFP Type C: XFP naar/van XFP |
| Bedrijfstemperatuur: | 0~50°C | Bergingstemperatuur:: | -10~+70°C |
| Vochtigheid: | 5%~ 90% | ||
| Markeren: | 10G SFP+ fiber media converter,unmanaged fiber to fiber converter,long-haul SFP+ OEO repeater |
||
Productomschrijving
10G SFP+ to SFP+ OEO Fiber to Fiber Media Converter
The 10G OEO (Optical-Electrical-Optical) converter is a 3R signal repeater and media converter that regenerates degraded 10 Gbps optical signals. It performs Re-amplification, Re-shaping, and Re-timing to overcome distance limitations and support seamless wavelength or media transitions across network backbones.
This standalone 10G OEO Converter (3R Repeater) is available with SFP+ to SFP+, XFP to XFP, or SFP+ to XFP slot configurations. Using optical-electricity-optical conversion principles, it enables optical signal amplification, regeneration, re-timing, and wavelength conversion. When combined with coarse/dense wavelength division multiplexing, it facilitates efficient WDM transmission.
The solution enables rapid communication capacity improvement and bandwidth expansion on existing networks through cost-effective, easy-to-operate systems.
Key Features
- Support for 2U Rack (16 Slots) and standalone use
- Comprehensive network management (Web SNMP, Console)
- In-band management capability
- Support for ITU-T prescribed DWDM/CWDM wavelengths
- Advanced 3R function (Re-amplification, Re-shaping, Re-timing)
- Jumbo Frame support
- Transparent transport with minimal delay
- DMI function support for SFP+/XFP fiber modules
- Loopback test functionality
- PRBS Generator and checker
- Hot plugging capability
- Comprehensive LED status display
- Easy installation and operation
Technical Specifications
| Performance Data | Technical Indexes |
|---|---|
| Equipment function | 3R Repeater |
| Transmission Speed | 10Gb/s (9.95Gb/s-11.35Gb/s) |
| Protocols | IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM) |
| Access Type | 10G LAN/10G WAN |
| Interface Type | Type A: SFP+ To/From SFP+ Type B: SFP+ To/From XFP Type C: XFP To/From XFP |
| Transmission Distance | SFP+ module: Up to 80Km XFP module: Up to 80Km |
| Maximum Packet Forwarding Rate | 14,880,950/S |
| Network Management Information | • Card type information • SFP+ or XFP fiber module detection • SFP+ or XFP fiber module DMI function (Temperature, Voltage, Optical power) • Link status detector • Enable/Disabled Loopback test function • Enable/Disable PRBS Generator and checker function • Rate select (10Gbase-Lan or Wan) • Remote card's status monitor (only in pairs) |
| Power Requirement | Rack-mountable: AC 85～220V OR DC -48V Standalone: AC 220V OR DC -48V Power consumption: ≤6W |
| Work Environment | Operating Temp: 0~50℃ Storage Temp: -10~70℃ Humidity: 5%~90% (non-condensing) |
| Dimension | Card: 115mm (W) × 78mm (D) Standalone: 156mm (W)×128mm(D)×32mm (H) |
Technical Documentation
Why Choose TAKFLY?
- 26+ years of fiber optic product manufacturing expertise
- 450+ experienced assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers driving continuous innovation
- 16 Germany-imported injection machines and advanced production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive quality testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
Frequently Asked Questions
- How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list. - Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods. - How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request. - Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment. - What if there is a quality problem when we receive the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production. - What are your packing terms?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests. - What are your payment terms?
T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment. - What are your delivery terms?
EXW, FOB, CFR, CIF, DDU - What is your delivery time?
Generally 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity. - Can you produce according to samples?
Yes, we can manufacture products based on your samples or technical drawings.
