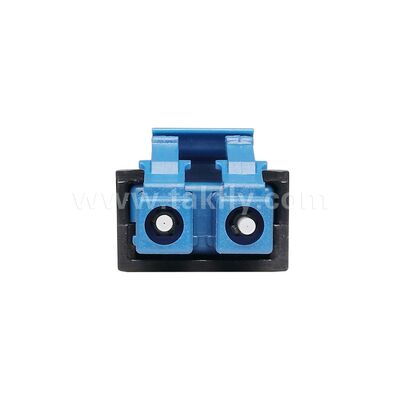

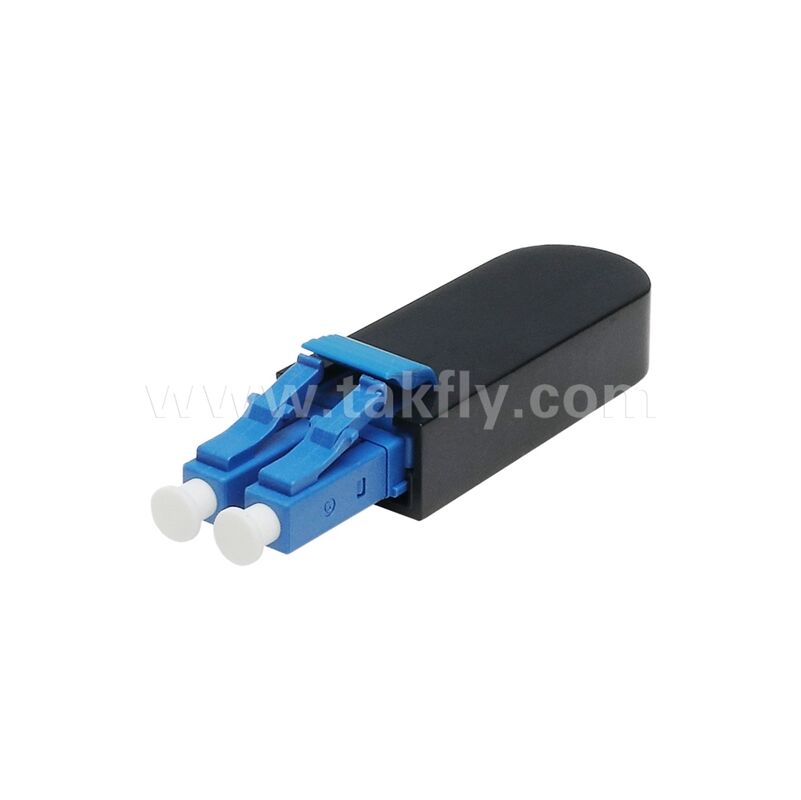

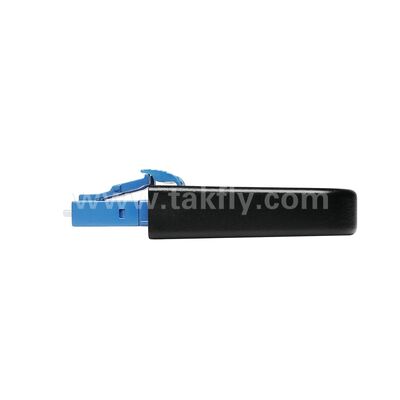

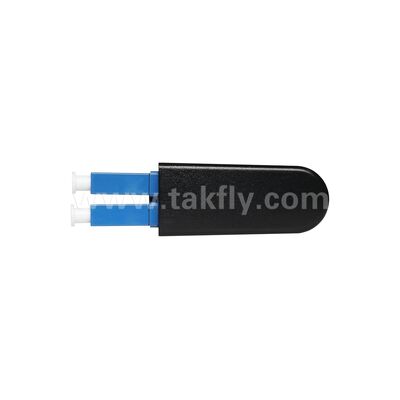

Singlemode SM LC/UPC Loopback
Productdetails:
| Plaats van herkomst: | SHENZHEN CHINA |
| Merknaam: | Takfly/OEM |
| Certificering: | ISO9001, ISO14001, CE, ROHS, REACH |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | USD 1.90~2.35 Piece |
| Verpakking Details: | Individuele zak en kartonnen doos |
| Levertijd: | 3 ~ 5 dagen |
| Betalingscondities: | L/C, D/A, D/P, T/T, Western Union |
| Levering vermogen: | 5000 stuks per dag |
|
Gedetailleerde informatie |
|||
| Connectortype: | LC/UPC | Optische vezel: | enkelmodus G657A1 |
|---|---|---|---|
| Golflengte: | 1310nm/1550nm | Invoegverlies: | Typisch≤0,20dB, Max≤0,30dB |
| Retourverlies: | ≥50db | Bedrijfstemperatuur: | -20~+60℃ |
| Markeren: | SM LC/UPC fiber loopback,singlemode fiber optic loopback,LC/UPC patchcord loopback tester |
||
Productomschrijving
Singlemode SM LC/UPC Loopback
Technical Specifications
| Parameter | Singlemode | Multimode |
|---|---|---|
| Test Wavelength | 1310nm/1550nm | 850nm/1300nm |
| Insertion Loss | Typical ≤0.20dB, Max ≤0.30dB | Typical ≤0.40dB, Max ≤0.50dB |
| Return Loss | UPC ≥50.0dB, APC ≥60.0dB | ≥35.0dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Durability | ≤0.20dB typical change, 1000 mating | |
| Operating Temperature | -20ºC to +60ºC | |
| Storage Temperature | -40ºC to +85ºC | |
Key Features
- Low insertion loss and high return loss
- Excellent exchangeability and durability
- Compact and efficient design
Applications
Device pig-tailing • Premise networks • Patch panel applications
