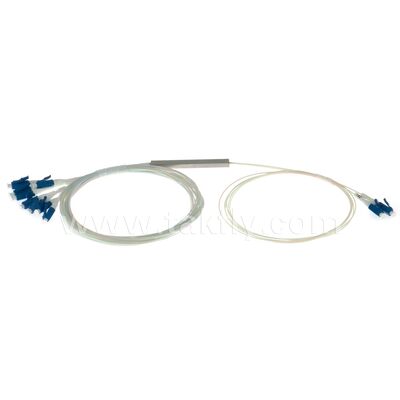

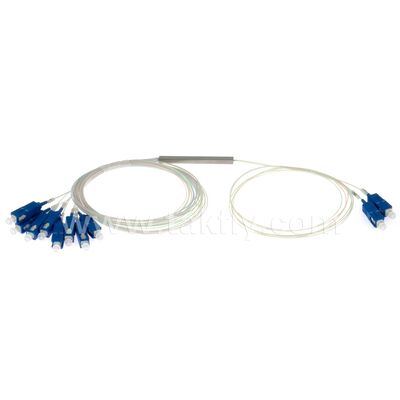

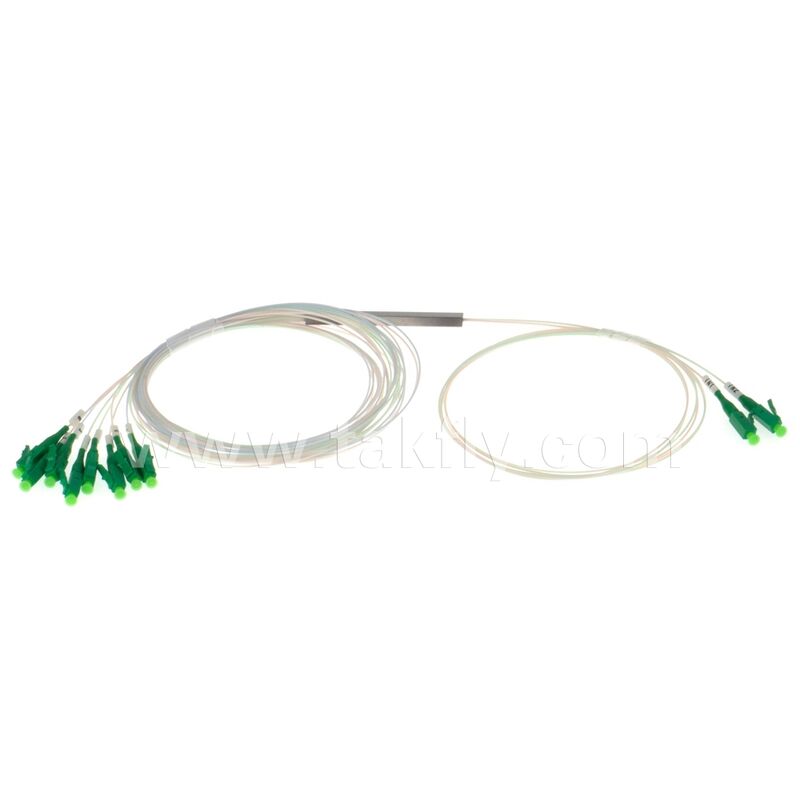

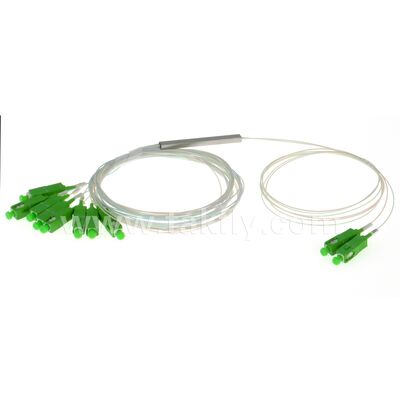

Fiber Optic PLC Splitter 2*N Steel Tube SC APC/UPC 0.9mm for Data Center Telecom FTTX
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | OEM |
| Certificering: | ISO, CE RoHS |
| Modelnummer: | DF-PLC-2xN-STAALBUIS |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | USD3.9-49/pc |
| Verpakking Details: | blisterverpakking + doos |
| Levertijd: | 5-8 werkdagen |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 50000 stuks per maand |
|
Gedetailleerde informatie |
|||
| Maatwerk: | Ja | ||
|---|---|---|---|
| Markeren: | Fiber Optic PLC Splitter steel tube,PLC Splitter SC APC UPC,Fiber Optic Splitter FTTX data center |
||
Productomschrijving
Fiber Optic PLC Splitter 2*N steel tube SC APC/UPC 0.9mm
PLC optical splitter is a power splitter based on integrated quartz baseplate technology. Single mode PLC 1×N and 2×N splitters uniformly divide optical signals from one or two inputs to multiple outputs. These splitters can also operate in reverse to combine multiple signals into one or two fibers.
Available with high-quality ferrule and professional polishing technology, ensuring precise optical endface matching for stable transmission and efficient connection.
TAKFLY's PLC optical splitter Mini steel tube delivers excellent performance parameters. The PLC optical splitter is wavelength-insensitive and supports full-band signal transmission from 1260 to 1650 nm.
PLC optical splitters offer wavelength insensitivity, high stability, and uniform splitting, making them essential passive devices in optical networks. Widely used in:
- MAN (Metropolitan Area Network)
- LAN (Local Area Network)
- FTTX networks
TAKFLY provides a comprehensive range of PLC optical splitters with full customization capabilities.
| Item | Parameter |
|---|---|
| Type (1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min. Return Loss (dB) | 55 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type (2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min. Return Loss (dB) | 55 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1, G657A2 and G652D |
| Operating Wavelength (nm) | 1260~1650 |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (℃) | -40~+85 |
| Storage Temperature (℃) | -40~+85 |
