12 Port High Density Lc Adapter SM/MM Low IL
Productdetails:
| Plaats van herkomst: | China, Shenzhen |
| Merknaam: | DF/OEM/Nuetral |
| Certificering: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modelnummer: | TK-PC-48F-SC-OS2-50M |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Bespreekbaar |
|---|---|
| Prijs: | negotiable denpend on QTY |
| Verpakking Details: | Blisterdoos + doos |
| Levertijd: | 5 tot 9 werkdagen, afhankelijk van de hoeveelheid |
| Betalingscondities: | Western Union, T/T, MoneyGram/Paypal |
| Levering vermogen: | 1000 stcs/dag |
|
Gedetailleerde informatie |
|||
| Productnaam: | 12 poort LC-adapter met hoge dichtheid | Modus: | Sm/mm |
|---|---|---|---|
| Interactieverlies: | SM≤0,2dB; MM≤0,2dB | Paringsduur ((500 timer): | Aanvullend verlies≤0,1 dB |
| Temperatuur ~ Stabiliteit: | Aanvullend verlies≤0,2 dB | Treksterkte: | 0,9 mm >5N |
| Werktemperatuur: | -20℃~+75℃ | Opslagtemperatuur: | -40 ℃ ~+85 ℃ |
| Vezelmerk: | Corning, YOFC, OFS, Draka | ||
| Markeren: | 12 port LC fiber optic adapter,high density LC adapter low IL,SM MM LC adapter panel |
||
Productomschrijving
12 Port High Density LC Adapter SM/MM Low IL
This adapter features a 12 port design that enables simultaneous transmission of multiple data channels, thereby improving system efficiency.
Moreover, it is internally equipped with carefully designed light blocking plates that play a crucial role in preventing human eyes from being injured by the illumination of fiber optic cables, effectively protecting vision.
This High Density 12 port LC adapter is highly suitable for applications that demand high-speed data transmission.
Adapter Applications
- CATV System
- Local Area Networks
- Telecommunication Networks
- FTTH and FTTx
- Testing Equipment
- Fiber LAN
Adapter Features
- Available Ceramic Sleeves
- Low Insertion Loss
- Carefully designed light blocking plate, safeguarding eye safety
- Independent fiber interfaces within a compact housing ideal for efficient high-density
- Compliant with IEC 61754-20 & IEC 61753-1 category(C)
- All parts compliant with ROHS
Adapter Specifications
| Product | 12 Port High Density LC Adapter Specification |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss≤0.1dB |
| Temperature Stability | Additional Loss≤0.2dB |
| Operating Temperature | -20℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |

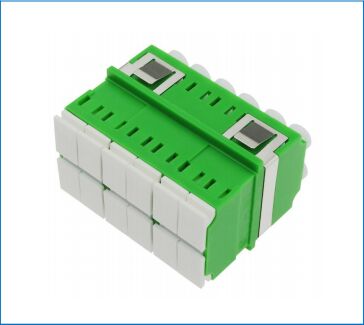

Product Picture
Why Choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
