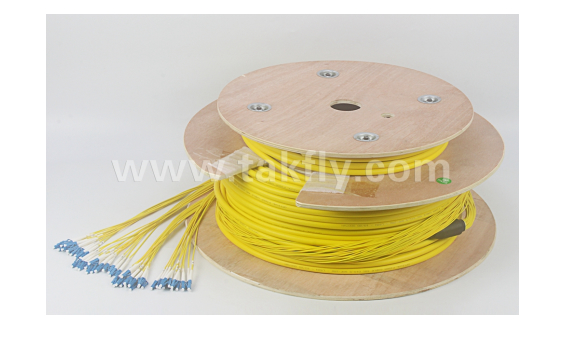

48 Cores SC UPC Pigtail Single Mode 2.5M LSZH Jacket
Productdetails:
| Plaats van herkomst: | China, Shenzhen |
| Merknaam: | DF/OEM/Nuetral |
| Certificering: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modelnummer: | TK-PC-48F-SC-OS2-50M |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Bespreekbaar |
|---|---|
| Prijs: | negotiable denpend on QTY |
| Verpakking Details: | Blisterdoos + doos |
| Levertijd: | 5 tot 9 werkdagen, afhankelijk van de hoeveelheid |
| Betalingscondities: | Western Union, T/T, MoneyGram/Paypal |
| Levering vermogen: | 1000 stcs/dag |
|
Gedetailleerde informatie |
|||
| Productnaam: | 48F glasvezel fanout-pigtail | Interactieverlies: | ≤0,3dB |
|---|---|---|---|
| Retournelverlies: | UPC SM≥50dB | Vezeltype: | Corning SM-G652D |
| Fanoutdiameter: | 1.6mm/2.0mm | Type connector: | SC/UPC |
| Jas materiaal: | Lszh | Kleur: | Geel of aangepast |
| Golflengte: | 1310nm, 1550nm | Lengte: | 10M, 20M of aangepast |
| Werktemperatuur: | -20 ℃ ~ 70 ℃ | Vezeldiameter: | 9/125 |
| Vezelmerk: | Corning, YOFC, OFS, Draka | ||
| Markeren: | 48 cores fiber optic pigtail,single mode SC UPC pigtail,LSZH jacket fiber pigtail |
||
Productomschrijving
48 Cores SC UPC Pigtail Single Mode 2.5M LSZH Jacket
Fiber Optic Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Pigtail Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 12.5mm(Fiber optic sub unit 2.0mm) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Why choose TAKFLY
Professional manufacturer:
- With more than 21 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
