ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
Productdetails:
| Plaats van herkomst: | Guangdong, shenzhen |
| Merknaam: | TAKFLY |
| Certificering: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Modelnummer: | DX-Armored-T1771 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 foto's |
|---|---|
| Prijs: | US$0.01 ~ US$1200/PC |
| Verpakking Details: | Spons + doos + karton |
| Levertijd: | 3-7 werkdagen |
| Betalingscondities: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Gedetailleerde informatie |
|||
| Buigradius: | 20D/15D | Installatie: | Lucht- |
|---|---|---|---|
| Schede: | LSZH | Connetcor: | SC/PC naar SC/PC |
| Diameter: | 8.5~16 mm | Kabeltype: | Enkele modus |
| Bedrijfstemperatuur: | -40°C tot +70°C | Toegestane treksterkte: | 100N <1000N |
| Lengte: | 2000 m per rol of op maat | Aantal vezels: | 2 kernen/4 kern |
| Transportpakket: | Houten trommel | Verpakking: | houten durm |
| Jasje: | PVC | Installatiemethode: | Binnen/buiten |
| Connectortype: | LC/UPC | Vezeltelling: | 12 |
| Buitenjasmateriaal: | PE | Kern: | 12, facultatief |
| Garantie tijd: | 20 jaar | Verzekering weerstand: | ≥ 1000N/100mm |
| Kabelstructuur: | Boogtype Strakke buffer | Productcode: | GJYXCH-1B |
| Buitenste mantelmateriaal: | MDPE | Treksterkte: | ≥100N |
| Maximale treksterkte: | 1000N | Model: | SC/APC~SC/APC |
| Invoegverlies: | 0.2DB | Buitendiameter: | 4.5 mm of op verzoek van de klant |
| Buitenmateriaal: | metalen draden | Standaard: | IEC60794 |
| Krachtlid: | OEM | Vezelaantal: | 12 cores |
| Productiejaar: | 2010 | Kleur buitenmantel: | Zwart, Grijs, Wit |
| Testgolflengte: | 1310 nm ~ 1550 nm | Kabelmodel: | GJPFJV |
| Trillingen: | ≤0,2dB | Pakket: | Houten Ram |
| Versterking: | van ijzer of van KFRP of FRP | Buitenmantel: | PE |
| Vezelkern: | 2 tot 144 kernen | Gegevenssnelheid: | 4*10G |
| Vezelopties: | G652D,G657A,Om1,Om2,Om3,Om4 | Nominaal Gewicht: | 83 |
| De Golflengte van de kabelscheiding: | λcc≤1260um | Installeer manier: | Het stof/leidt Begraven Installatie |
| Buis: | Loze buisontwerp | Materiaal: | PE/LSZH |
| Haven: | Ningbo | Kleur: | Geel of aangepast |
| Jasmateriaal: | PVC | Aantal kernen: | op uw verzoek |
| Verzending: | TNT, DHL, UPS, FEDEX of EMS | Binnen of buiten: | Binnen |
| Trommelmaat: | 300x300x300 | Vezel lengte: | 1m of aangepast |
| Vezelmodus: | Geïntegreerde modus | Trefwoorden: | ADSS-Kabel |
| Netwerk: | 4g, 3G | OEM: | Welkom |
| Aantal geleiders: | ≥ 10 | ||
| Markeren: | ADSS fiber optic cable 100m span,All-dielectric aerial cable 96 fibers,Self-supporting fiber optic cable 4 fibers |
||
Productomschrijving

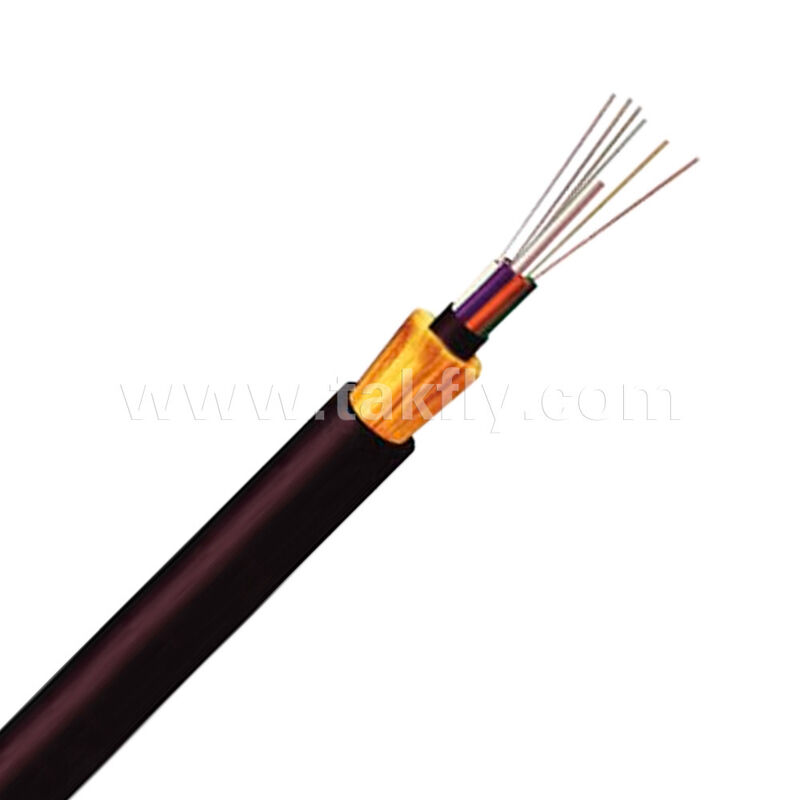

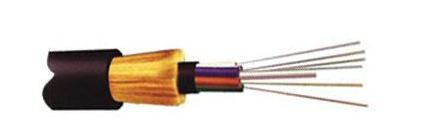

ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
This non-metallic, fully dielectric overhead cable is designed for a standard span of 100 meters. Available fiber counts: 4, 6, 12, 24, 48, 96 (G.652D single‑mode). The cable can be installed directly on poles or towers without a steel messenger. Suitable for power transmission lines (10kV-220kV) and telecommunication networks.
Fiber Optical & Geometrical Data (G.652D)
Attenuation, Dispersion & PMD Parameters
| Parameter | Unit | Before Cabling | After Cabling |
|---|---|---|---|
| Attenuation @1310 nm | dB/km | ≤0.34 | ≤0.38 |
| Attenuation @1550 nm | dB/km | ≤0.21 | ≤0.28 |
| Zero dispersion wavelength | nm | 1300-1324 | - |
| Zero dispersion slope | ps/(nm²*km) | ≤0.092 | - |
| Cable cut‑off wavelength λcc | nm | ≤1260 | - |
| Dispersion coefficient @1550 nm | ps/(nm*km) | ≤18 | - |
| Dispersion coefficient @1625 nm | ps/(nm*km) | ≤22 | - |
| PMD (max. individual fiber) | ps/√km | ≤0.1 | - |
| PMD (link design, M=20, Q=0.01%) | ps/√km | ≤0.06 | - |
| PMD (typical) | ps/√km | 0.04 | - |
| Group index (typ.) @1310 nm | - | 1.466 | - |
| Group index (typ.) @1550 nm | - | 1.467 | - |
| Macro‑bend loss (1 turn, 16mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 25mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 30mm radius) @1550 nm | dB | ≤0.05 | - |
Fiber Geometry Specifications
| Parameter | Unit | Value |
|---|---|---|
| Cladding diameter | µm | 125 ± 0.7 |
| Cladding non‑circularity | % | ≤1.0 |
| Coating diameter | µm | 235-250 |
| Coating/cladding concentricity error | µm | ≤12.0 |
| Coating non‑circularity | % | ≤6.0 |
| Core/cladding concentricity error | µm | ≤0.6 |
| Mode field diameter (MFD) @1310 nm | µm | 8.7-9.5 |
| Mode field diameter (MFD) @1550 nm | µm | 9.8-10.8 |

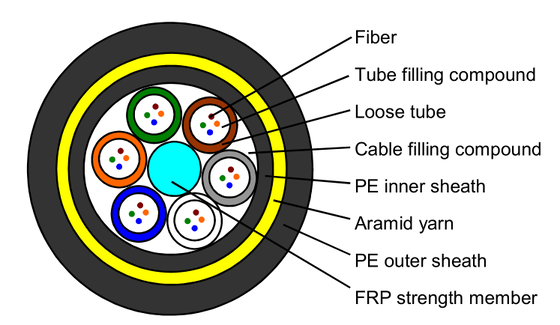

Cable Construction & Mechanical Specifications
The table below details loose tube stranded design for 24, 48 and 96 fibers. Configurations for 4, 6 and 12 fibers are available on request.
| Parameter | 24‑Fiber | 48‑Fiber | 96‑Fiber |
|---|---|---|---|
| Structure type | 1+6 | 1+6 | 1+8 |
| Central strength member (FRP) diameter | 2.0 mm | 2.0 mm | 2.0 / 3.7 mm |
| Loose tube material | PBT | PBT | PBT |
| Loose tube diameter | 2.0 mm | 2.0 mm | 2.0 mm |
| Number of loose tubes | 4 | 4 | 8 |
| Fibers per tube | 6 | 12 | 12 |
| Number of fillers | 2 | 0 | 0 |
| Water‑blocking | yarns + tape | yarns + tape | yarns + tape |
| Ripcords | 2 pieces | 2 pieces | 2 pieces |
| Peripheral strength member | Aramid yarns | Aramid yarns | Aramid yarns |
| Outer sheath material | MDPE (black) | MDPE (black) | MDPE (black) |
| Sheath nominal thickness | 1.7 mm | 1.7 mm | 1.7 mm |
| Cable diameter (±0.5 mm) | 9.5 mm | 10.0 mm | 11.8 mm |
| Cable weight (±10%, kg/km) | 70 kg/km | 75 kg/km | 110 kg/km |
| Maximum allowed tensile (MAT) | 2700 N | 2700 N | 2700 N |
| Span length | 100 m | 100 m | 100 m |
| Crush resistance - short term | 2200 N/100mm | 2200 N/100mm | 2200 N/100mm |
| Bending radius - operation | 15 × OD | 15 × OD | 15 × OD |
| Bending radius - installation | 25 × OD | 25 × OD | 25 × OD |
| Temperature - operation | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Temperature - installation | -20℃ ~ +60℃ | -20℃ ~ +60℃ | -20℃ ~ +60℃ |
| Temperature - storage/shipping | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
OD = Cable outer diameter
Packing, Drum & Cable Marking
| Item | Specification |
|---|---|
| Standard reel length | 2.0 - 4.0 km per wooden composite drum (export type) |
| Fumigation | Report and stamp provided upon request |
| Cable marking | Inkjet printed every meter: year, cable type, fiber count, length. Custom marking available. |
Applicable Standards
- DL/T 788‑2016 / YD/T 980‑2002
- IEC 60794‑4 / IEEE 1222
- Telcordia GR‑20
Ordering Options
| Model | Fiber Count | Span | Sheath Color |
|---|---|---|---|
| ADSS‑100M‑4X | 4 | 100 m | Black |
| ADSS‑100M‑6X | 6 | 100 m | Black |
| ADSS‑100M‑12X | 12 | 100 m | Black |
| ADSS‑100M‑24X | 24 | 100 m | Black |
| ADSS‑100M‑48X | 48 | 100 m | Black |
| ADSS‑100M‑96X | 96 | 100 m | Black |
For detailed construction drawings of 4/6/12‑fiber variants, please contact us.
